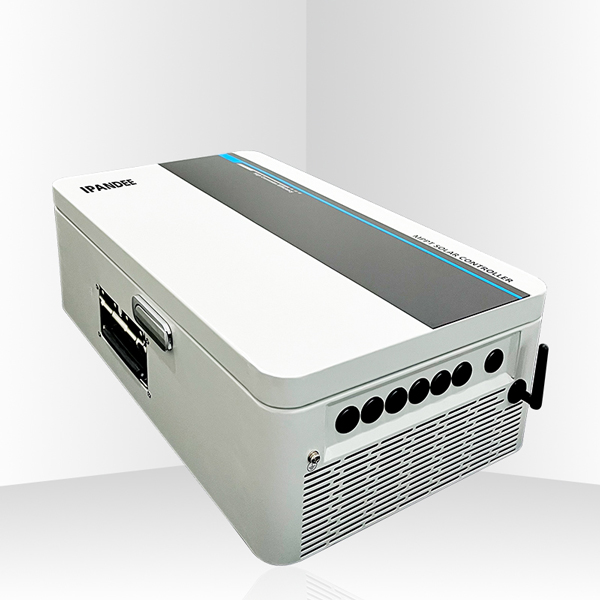

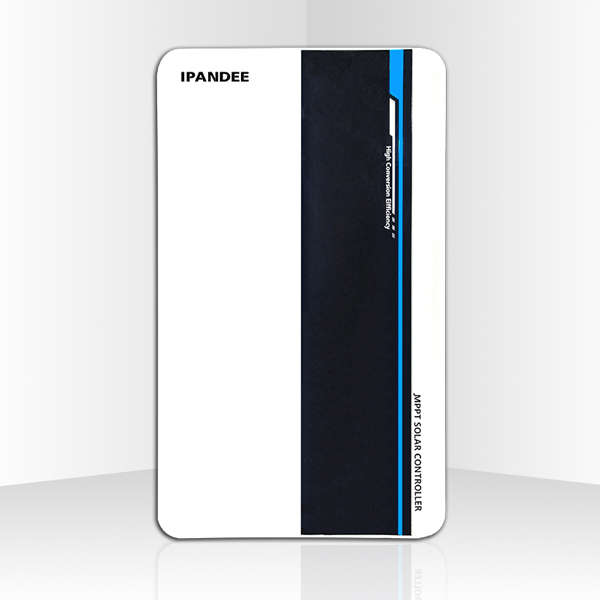

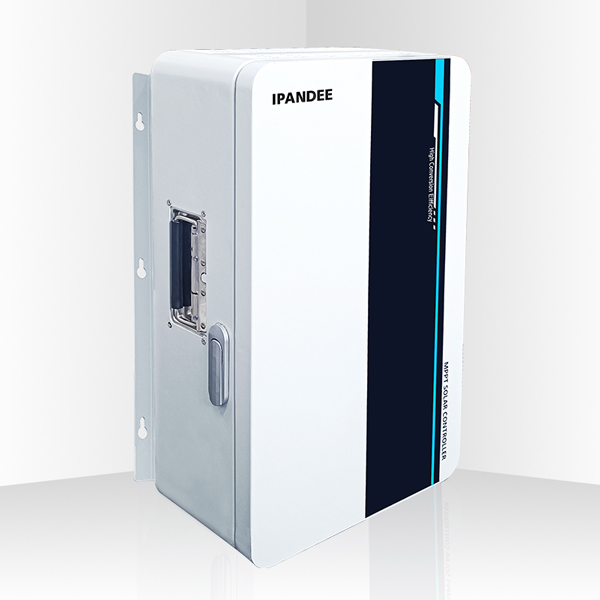

Galaxy series MPPT solar charge controller
System voltage: 96V;192V;240V;360V;384V
Charge current: 60A;70A;80A;100A
Max PV input: 430V;660V;850V
Maximum solar panel power: 7280W-52000W(7KW-52KW)
Support parallel charging(up to 255 units)
Protection level: IP21
Support remote control&monitor (PC software and APP)
RS485 communication
Suitable for high power off grid system
OEM/ODM available, all functions and specifications can be customized.
| Lithium-ion battery system | 96V | 192V | 240V | 360V | 384V | |
| Rated input power | 6240W~10400W | 10400W~20800W | 13000W~26000W | 31200W | 33280W~41600W | |
| Rated charge current | 60A~100A | 50A~100A | 50A~100A | 80A | 80A~100A | |
| IP(Ingress protection) | IP21 | |||||
The tracking efficiency is as high as 99.5%.
Support various lead-acid batteries and lithium batteries.
Three-stage charging of constant current, constant voltage and floating charge
Dual RS485 communication, support integrated monitoring and secondary development.
Support multiple parallel communication, unified integrated monitoring.
Household
Base station
Island Photovoltaic Power Station

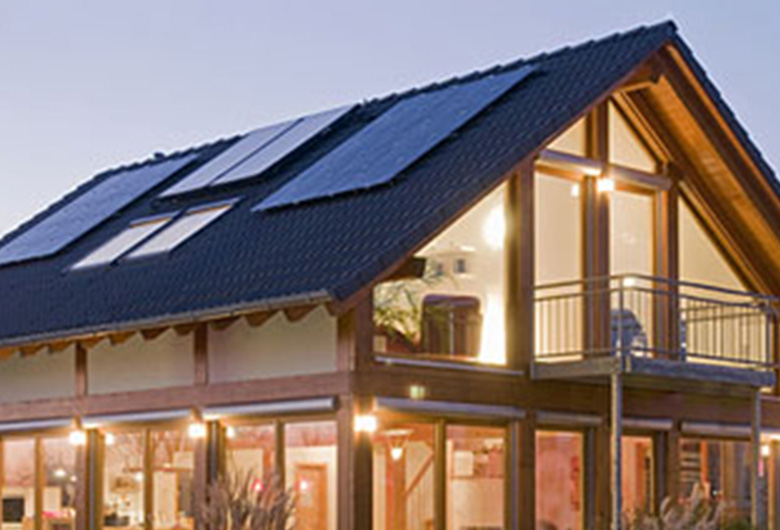

Household
The household photovoltaic power generation system can meet the electricity demand in areas without electricity or unstable electricity, and its power level generally ranges from several hundred watts to several kilowatts.

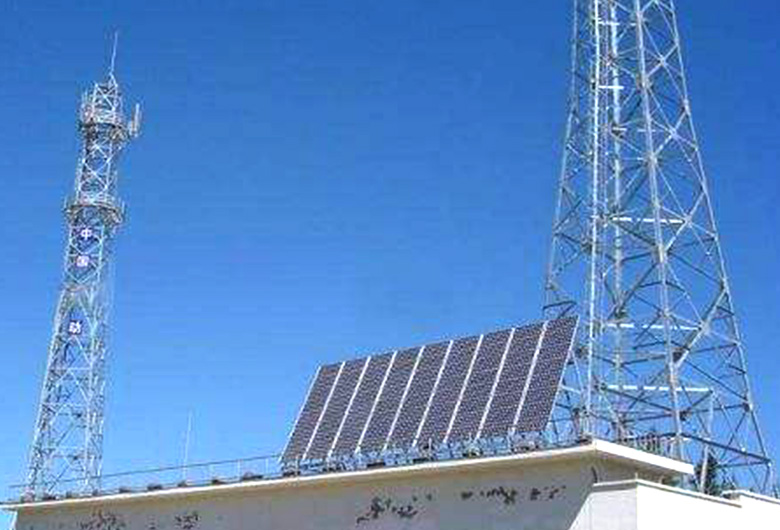

Base station
The use of solar energy systems for base stations and communication stations can not only reduce the overall cost of the system, but also improve the power supply guarantee rate of the system. It can also be applied to the centralized power supply of villages, islands and communication base stations to meet the power demand of the load.

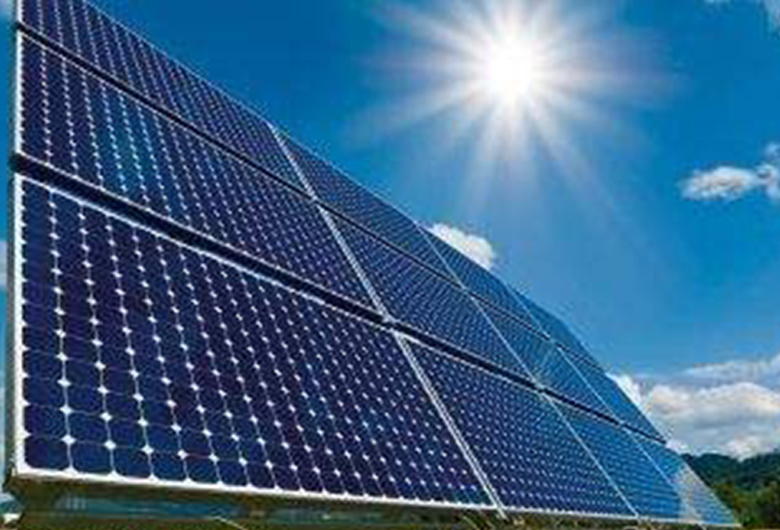

Island Photovoltaic Power Station
There is no mains access or the use of power stations such as geographically remote areas or islands.
