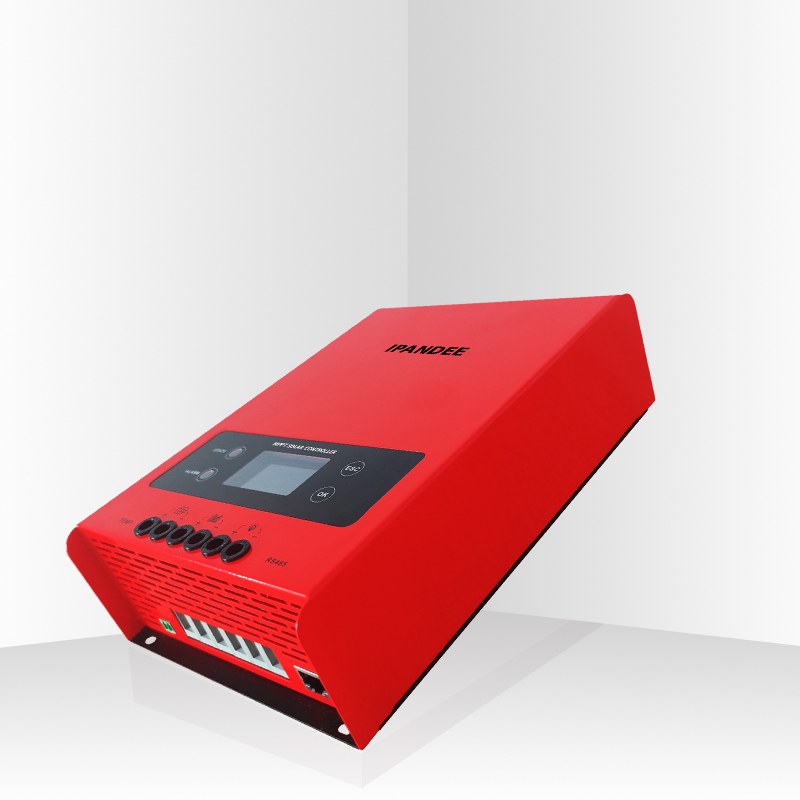

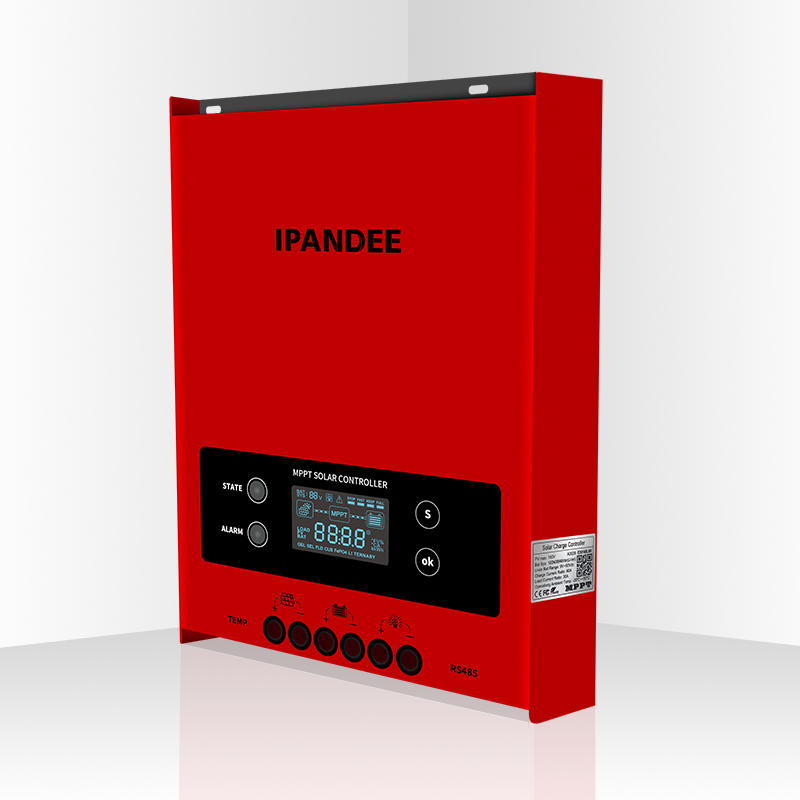

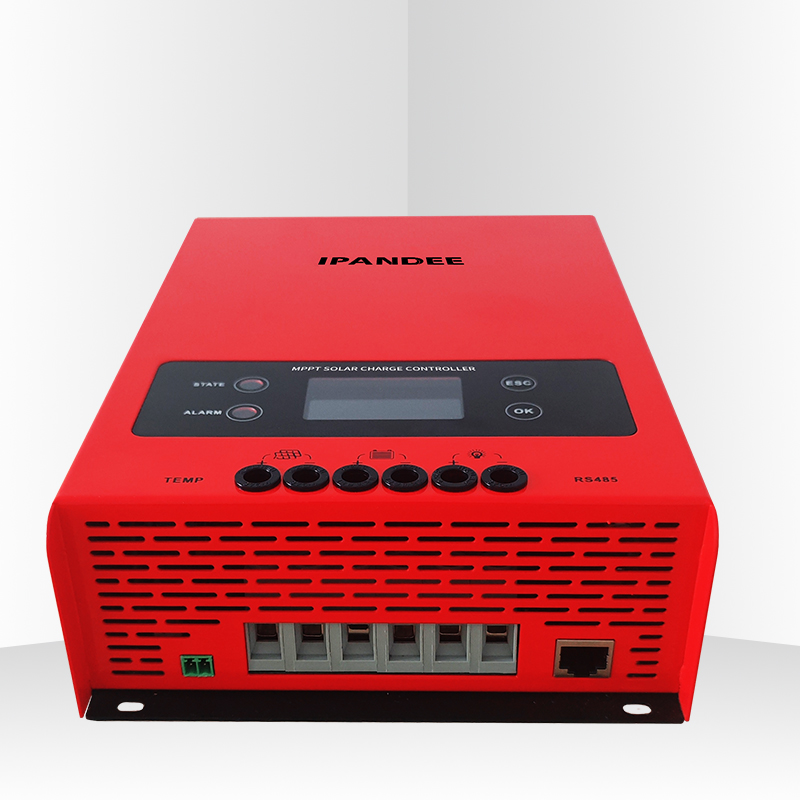

Name: eSmart4 series (12V/24V/36V/48V,50A/60A) MPPT solar charge controller
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

eSmart4 series

MPPT solar charge controller

System voltage: 12V/24V/36V/48V (AUTO)

Charge current: 50A;60A

Max PV input: 150V/200V

Maximum solar panel power: 250W-3120W

Lithium battery automatic activation function

Protection level: IP21

Support remote control&monitor (PC software and APP)

RS485 communication

Suitable for wall mounted, pole mounted

OEM/ODM available, all functions and specifications can be customized.

MPPT solar charge controller eSmart4 (12V/24V/36V/48V,50A/60A) Specifications

eSMART 4 Series		ESF48L50	ESF48L60	ESF48H50	ESF48H60
Reted PV Power	12V system	650W	780W	650W	780W
	24V system	1300W	1560W	1300W	1560W
	36V system	1950W	2340W	1950W	2340W
	48V system	2600W	3120W	2600W	3120W
Rated charge current		50A	60A	50A	60A
Rated load current		30A
IP(Ingress protection)		IP21

Main Feature of MPPT solar charge controller eSmart(12V24V36V48V,50A-60A)

The tracking efficiency is as high as 99.5%.
Built-in lithium battery activated wake-up function.
RS485 bus, unified integrated management and secondary development.
A variety of protection functions, small body is very useful.

Application of MPPT solar charge controller eSmart 4 (12V24V36V48V,20A-60A)

Household power station system
communication base station
RV power supply
Solar monitoring

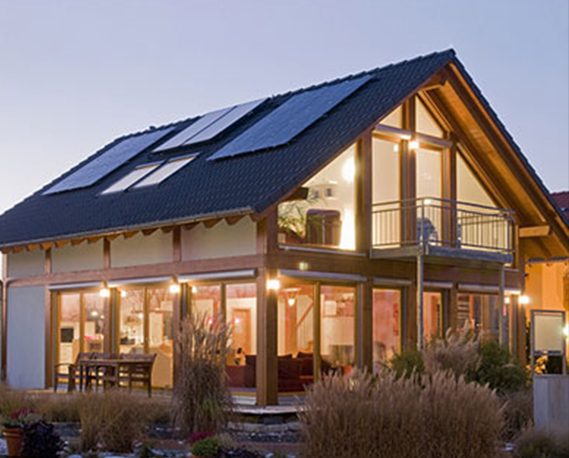

Household power station system

The household photovoltaic power generation system can meet the electricity demand in areas without electricity or unstable electricity, and its power level generally ranges from several hundred watts to several kilowatts.

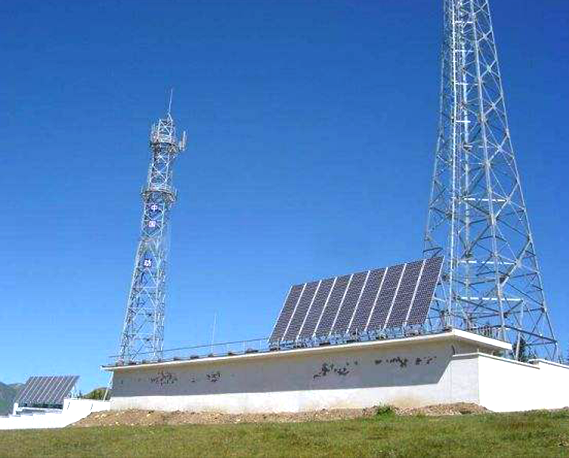

communication base station

The use of solar energy systems for base stations and communication stations can not only reduce the overall cost of the system, but also improve the power supply guarantee rate of the system. It can also be applied to the centralized power supply of villages, islands and communication base stations to meet the power demand of the load.

RV power supply

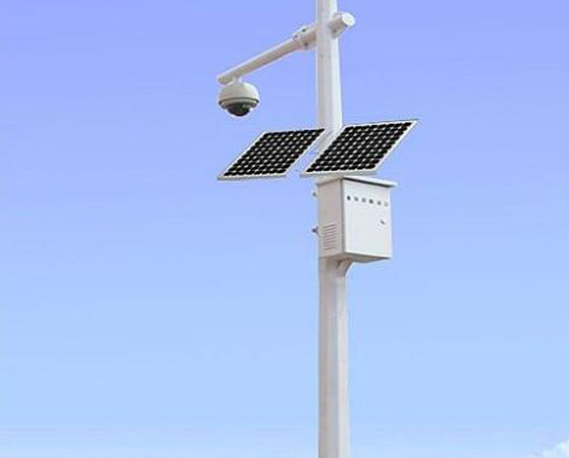

Solar monitoring

The solar monitoring system is generally used for road monitoring of urban and rural roads. The intelligent solar charging system can realize the intelligent remote monitoring and management of monitoring equipment and reduce the operation and maintenance cost of the system.

IPANDEE Updates

13

Dec

China Mobile Stacked PV Base Stations was Successful Delivered, IPANDEE Strives to Help Carriers on Energy Conservation and Emission Reduction, Cost Optimization, and Efficiency Improvements
In October 2024, IPANDEE, in collaboration with its partners, delivered the first solar-powered, green energy-integrated 5G base stations for Guangdong Mobile. The energy consumption of 5G bas...

Read More +
27

Nov

Leader of Shenzhen New Energy Association Visited IPANDEE for Exchange
On September 10, 2024, Mr. Sun Siyuan, Secretary General of Shenzhen New Energy Association, visited Shenzhen IPANDEE New Energy Technology Co., Ltd. (hereinafter referred to as "IPANDEE") a...

Read More +
23

Nov

IPANDEE PV Adapter & Intelligent Combiner Help operators Reduce Carbon Emissions and Costs and Promote the Development of Green Stacked PV Base Stations
As the energy crisis continues to ferment, energy prices have risen, and operators have faced new challenges in energy. For example, some operators in Europe are facing the challenge of energy shortag...

Read More +

eSmart4 series (12V/24V/36V/48V,50A/60A) MPPT solar charge controller

MPPT solar charge controller eSmart4 (12V/24V/36V/48V,50A/60A) Specifications

Main Feature of MPPT solar charge controller eSmart(12V24V36V48V,50A-60A)

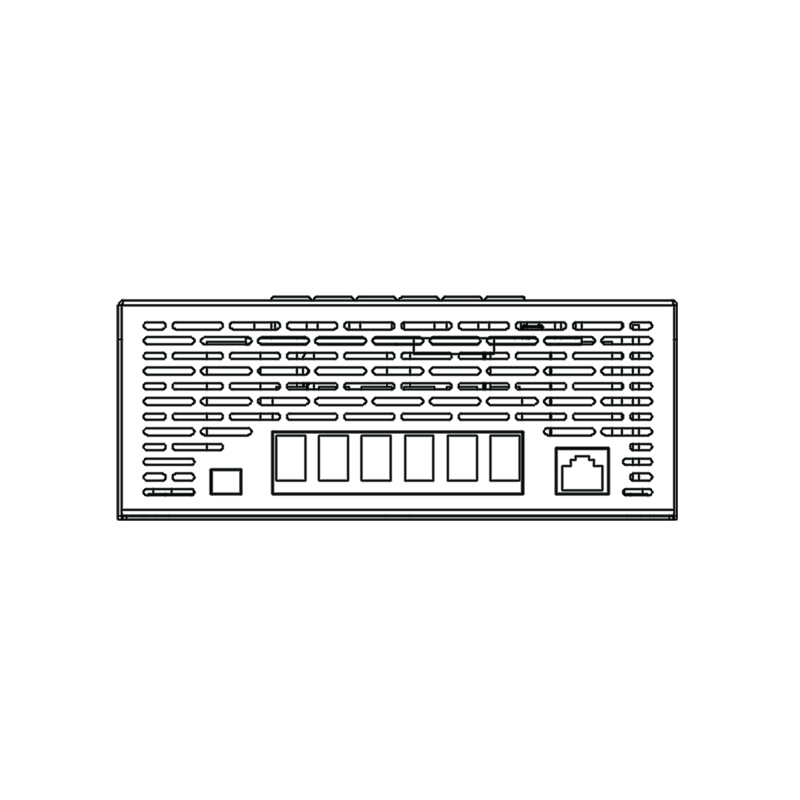

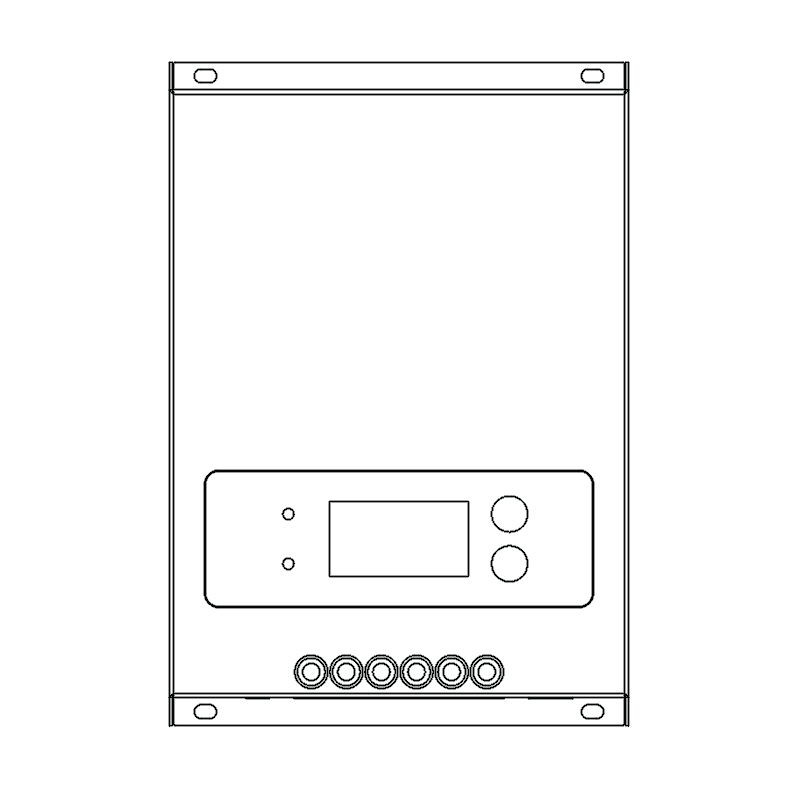

MPPT solar charge controller eSmart 4(12V24V36V48V,50A-60A)Technical Drawing
