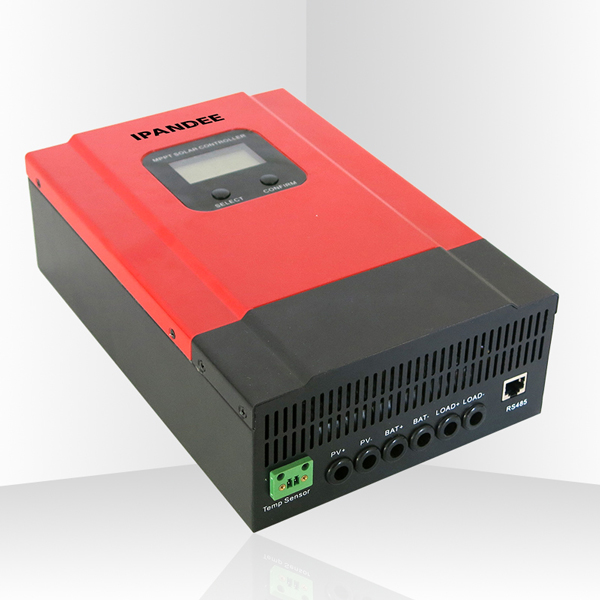

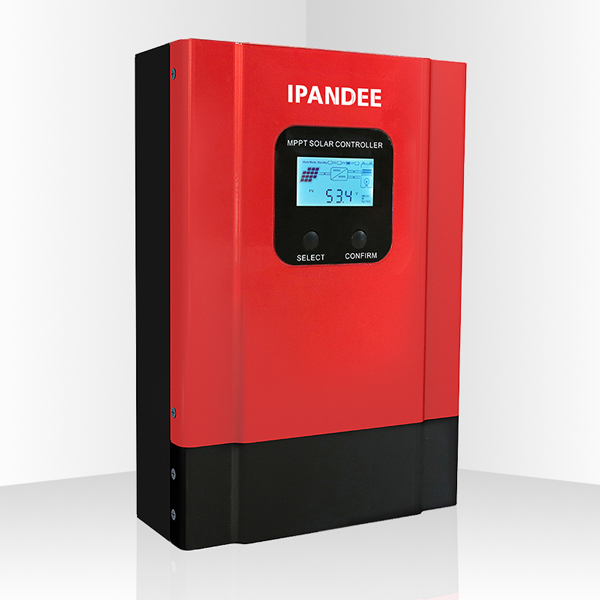

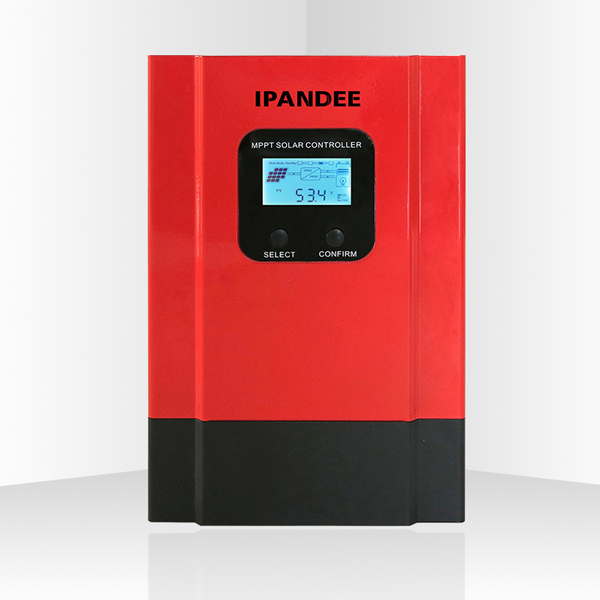

Name: eSmart 3 series (12V/24V/36V/48V,20A-60A) MPPT solar charge controller
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

eSmart 3 series

MPPT solar charge controller

System voltage: 12V/24V/36V/48V (AUTO)

Charge current: 20A;30A;40A;50A;60A

Max PV input: 150V

Maximum solar panel power: 250W-3120W

Protection level: IP21

Support remote control&monitor (PC software and APP)

RS485 communication

Suitable for wall mounted, pole mounted

OEM/ODM available, all functions and specifications can be customized.

MPPT solar charge controller eSmart 3 (12V24V36V48V,20A-60A) Specifications

eSMART 3 Series		E20	E30	E40	E50	E60
Reted PV Power	12V system	260W	390W	520W	650W	780W
	24V system	520W	780W	1040W	1300W	1560W
	36V system	780W	1170W	1560W	1950W	2340W
	48V system	1040W	1560W	2080W	2600W	3120W
Rated charge current		20A	30A	40	50A	60A
Rated load current		40A			60A
IP(Ingress protection)		IP21

Main Feature of MPPT solar charge controller eSmart 3 (12V24V36V48V,20A-60A)

The tracking efficiency is as high as 99.5%.
Automatic identification of battery system voltage
Three-stage charging of constant current, constant voltage and floating charge
RS485 communication, support integrated management and secondary development.

Application of MPPT solar charge controller eSmart 3 (12V24V36V48V,20A-60A)

Household
Agricultural power supply
Telecom Project
Base station

Household

The household photovoltaic power generation system can meet the electricity demand in areas without electricity or unstable electricity, and its power level generally ranges from several hundred watts to several kilowatts.

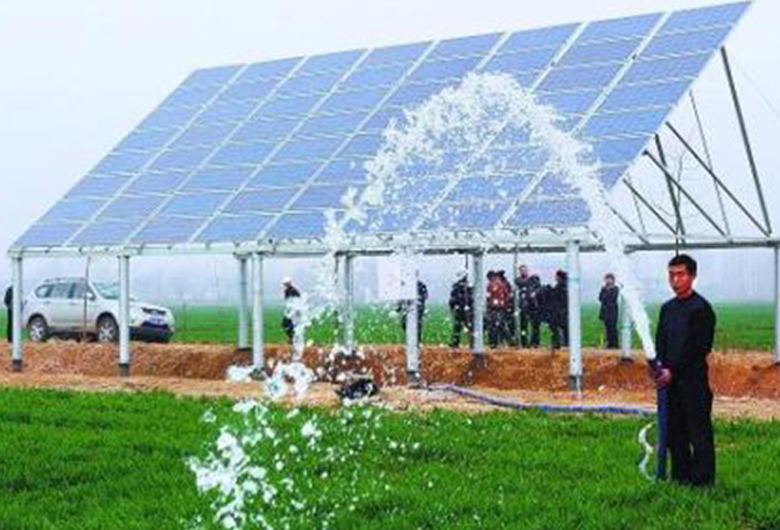

Agricultural power supply

It is suitable for agriculture, animal husbandry and other fields.

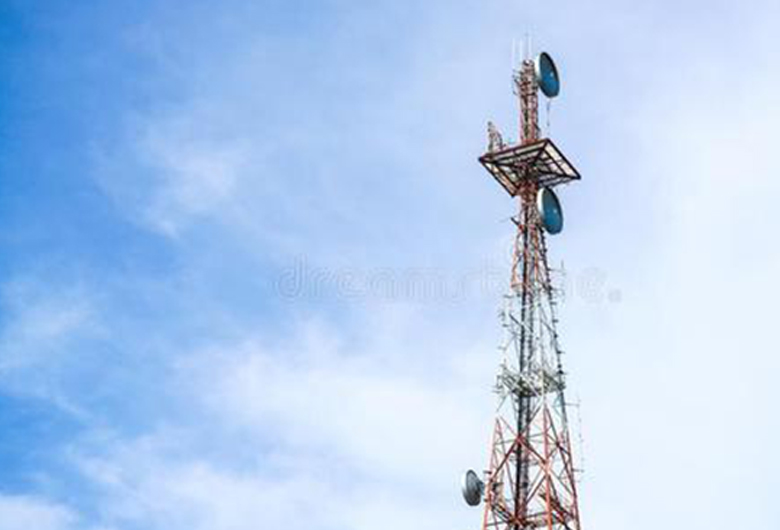

Telecom Project

Applicable to telecommunication signal towers, monitoring stations and other fields.

Base station

The use of solar energy systems for base stations and communication stations can not only reduce the overall cost of the system, but also improve the power supply guarantee rate of the system. It can also be applied to the centralized power supply of villages, islands and communication base stations to meet the power demand of the load.

IPANDEE Updates

13

Dec

China Mobile Stacked PV Base Stations was Successful Delivered, IPANDEE Strives to Help Carriers on Energy Conservation and Emission Reduction, Cost Optimization, and Efficiency Improvements
In October 2024, IPANDEE, in collaboration with its partners, delivered the first solar-powered, green energy-integrated 5G base stations for Guangdong Mobile. The energy consumption of 5G bas...

Read More +
27

Nov

Leader of Shenzhen New Energy Association Visited IPANDEE for Exchange
On September 10, 2024, Mr. Sun Siyuan, Secretary General of Shenzhen New Energy Association, visited Shenzhen IPANDEE New Energy Technology Co., Ltd. (hereinafter referred to as "IPANDEE") a...

Read More +
23

Nov

IPANDEE PV Adapter & Intelligent Combiner Help operators Reduce Carbon Emissions and Costs and Promote the Development of Green Stacked PV Base Stations
As the energy crisis continues to ferment, energy prices have risen, and operators have faced new challenges in energy. For example, some operators in Europe are facing the challenge of energy shortag...

Read More +

eSmart 3 series (12V/24V/36V/48V,20A-60A) MPPT solar charge controller

MPPT solar charge controller eSmart 3 (12V24V36V48V,20A-60A) Specifications

Main Feature of MPPT solar charge controller eSmart 3 (12V24V36V48V,20A-60A)

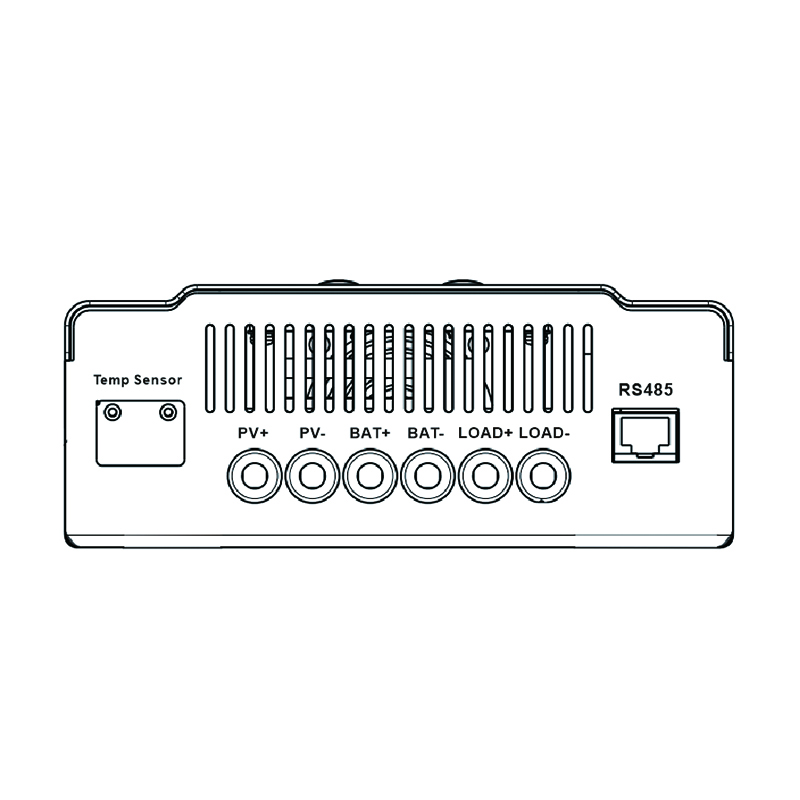

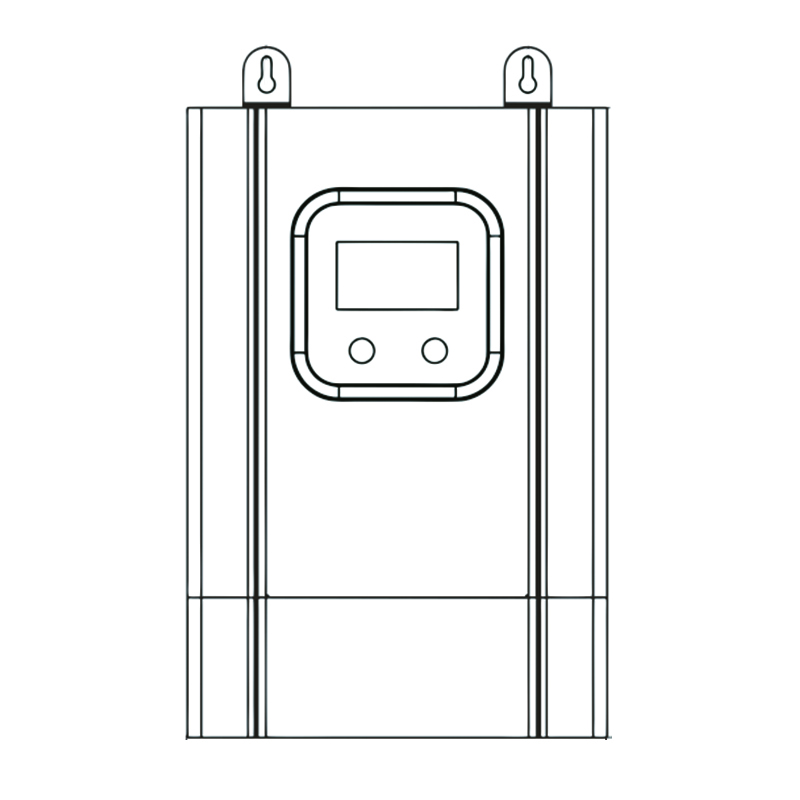

MPPT solar charge controller eSmart 3 (12V24V36V48V,20A-60A)Technical Drawing
