Name: Explorer series (12V/24V/36V/48V,50A-60A) MPPT solar charge controller
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

Explorer series

Outdoor MPPT solar charge controller

System voltage: 12V/24V/36V/48V (AUTO)

Charge current: 50A;60A

Max PV input: 150V

Maximum solar panel power: 650W-3120W

Protection level: IP65

Support parallel charging

Support remote control&monitor (PC software and APP)

RS485 communication

Suitable for wall mounted, pole mounted

OEM/ODM available, all functions and specifications can be customized.

MPPT solar charge controller Explorer(12V24V36V48V,40A-60A) Specifications

Explorer Series		E4850	E4860
System voltage	Lead acid battery system	12V/24V/36V/48V Auto (Lead acid battery)
Battery types		Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT)
Rated charge current		50A	60A
Rated load current		30A
IP(Ingress protection)		IP65

Main Feature of MPPT solar charge controller Explorer(12V24V36V48V,40A-60A)

The tracking efficiency is as high as 99.5%.
Lithium battery activates the wake-up function.
IP65 high protection level.
Dual RS485 communication, support integrated management and secondary development.

Household

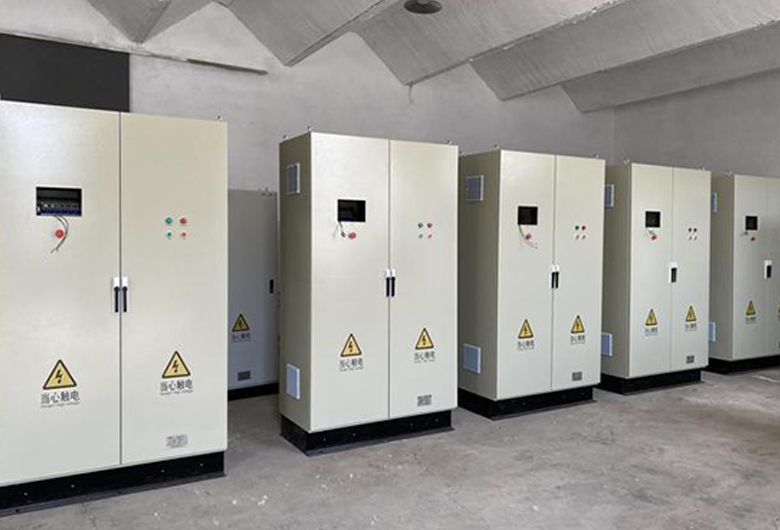

Energy Storage System

Photovoltaic Engineering Project

Base Station
