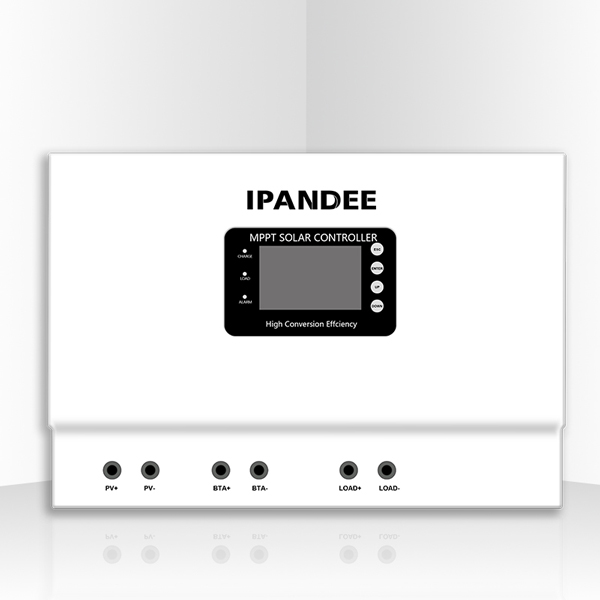

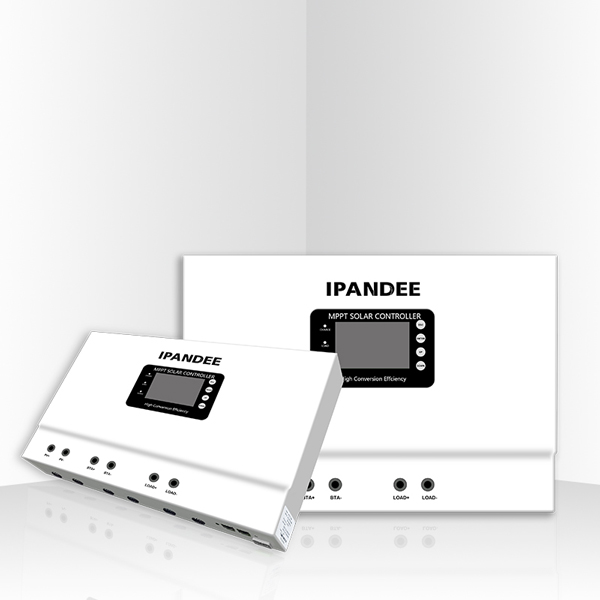

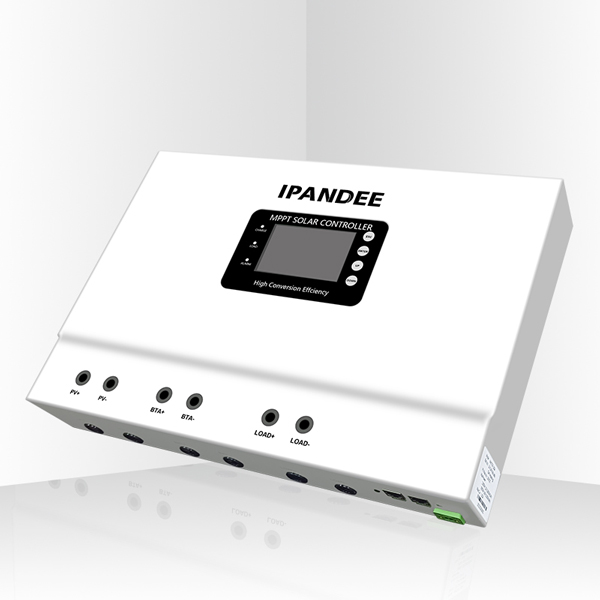

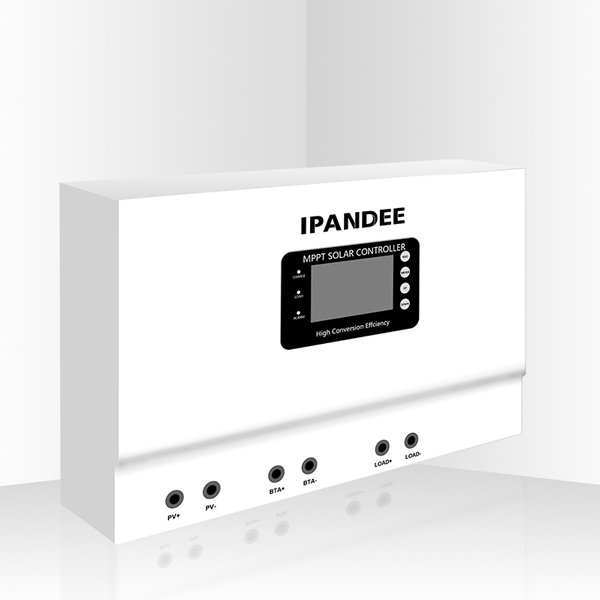

Name: Master series MPPT controller 12V/24V/36V/48V/96V
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

Master series

MPPT solar charge controller

System voltage: 12V/24V/36V/48V (AUTO); 96V

Charge current: 50A;80A;100A

Max PV input: 150V/300V

Maximum solar panel power: 260W-1680W

Support parallel charging(up to 255 units)

Protection level: IP43

Support remote control&monitor (PC software and APP)

RS485 communication

Suitable for Telecom tower base station

OEM/ODM available, all functions and specifications can be customized.

MPPT solar charge controller Master(12V24V36V48V,96V,50A-100A) Specifications

Master Series	M48L80	M48L100	M48H80	M96H50
System voltage	Auto		48V	96V
Rated charge current	80A	100A	80	50A
Rated load current	80A	100A	80	50A
IP(Ingress protection)	IP43

Main Feature of MPPT solar charge controller Master(12V24V36V48V,96V,50A-100A)

The tracking efficiency is as high as 99.5%.
Support various lead-acid batteries and lithium batteries.
high-definition LCD high-definition backlight display.
Dual RS485 communication, support integrated monitoring and secondary development.

Application of MPPT solar charge controller Master(12V24V36V48V,96V,50A-100A)

Household
Base Station

Household

The household photovoltaic power generation system can meet the electricity demand in areas without electricity or unstable electricity, and its power level generally ranges from several hundred watts to several kilowatts.

Base Station

The use of solar energy systems for base stations and communication stations can not only reduce the overall cost of the system, but also improve the power supply guarantee rate of the system. It can also be applied to the centralized power supply of villages, islands and communication base stations to meet the power demand of the load.

IPANDEE Updates

13

Dec

China Mobile Stacked PV Base Stations was Successful Delivered, IPANDEE Strives to Help Carriers on Energy Conservation and Emission Reduction, Cost Optimization, and Efficiency Improvements
In October 2024, IPANDEE, in collaboration with its partners, delivered the first solar-powered, green energy-integrated 5G base stations for Guangdong Mobile. The energy consumption of 5G bas...

Read More +
27

Nov

Leader of Shenzhen New Energy Association Visited IPANDEE for Exchange
On September 10, 2024, Mr. Sun Siyuan, Secretary General of Shenzhen New Energy Association, visited Shenzhen IPANDEE New Energy Technology Co., Ltd. (hereinafter referred to as "IPANDEE") a...

Read More +
23

Nov

IPANDEE PV Adapter & Intelligent Combiner Help operators Reduce Carbon Emissions and Costs and Promote the Development of Green Stacked PV Base Stations
As the energy crisis continues to ferment, energy prices have risen, and operators have faced new challenges in energy. For example, some operators in Europe are facing the challenge of energy shortag...

Read More +

Master series MPPT controller 12V/24V/36V/48V/96V

MPPT solar charge controller Master(12V24V36V48V,96V,50A-100A) Specifications

Main Feature of MPPT solar charge controller Master(12V24V36V48V,96V,50A-100A)

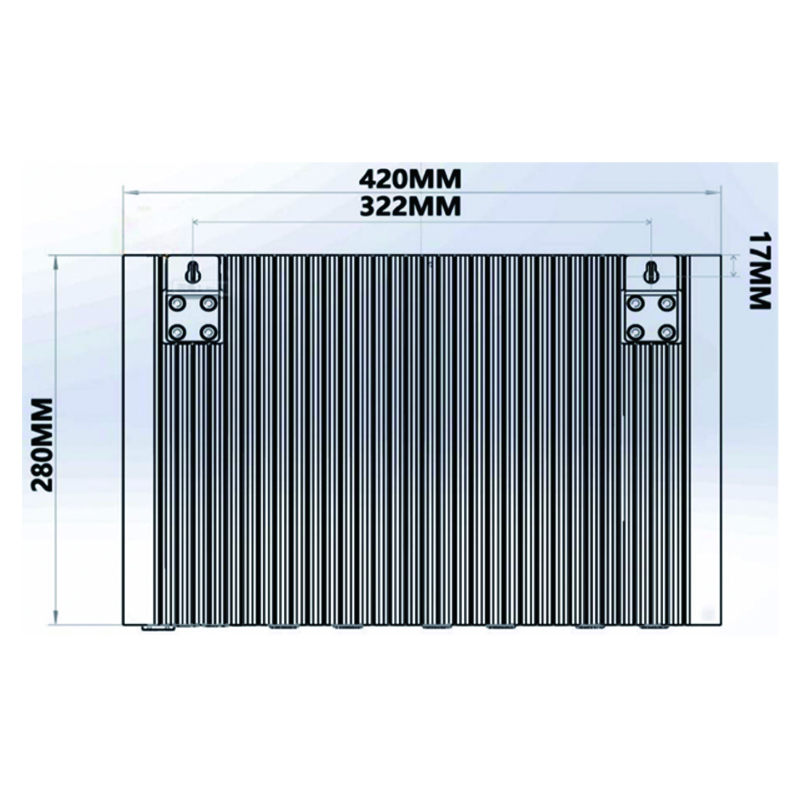

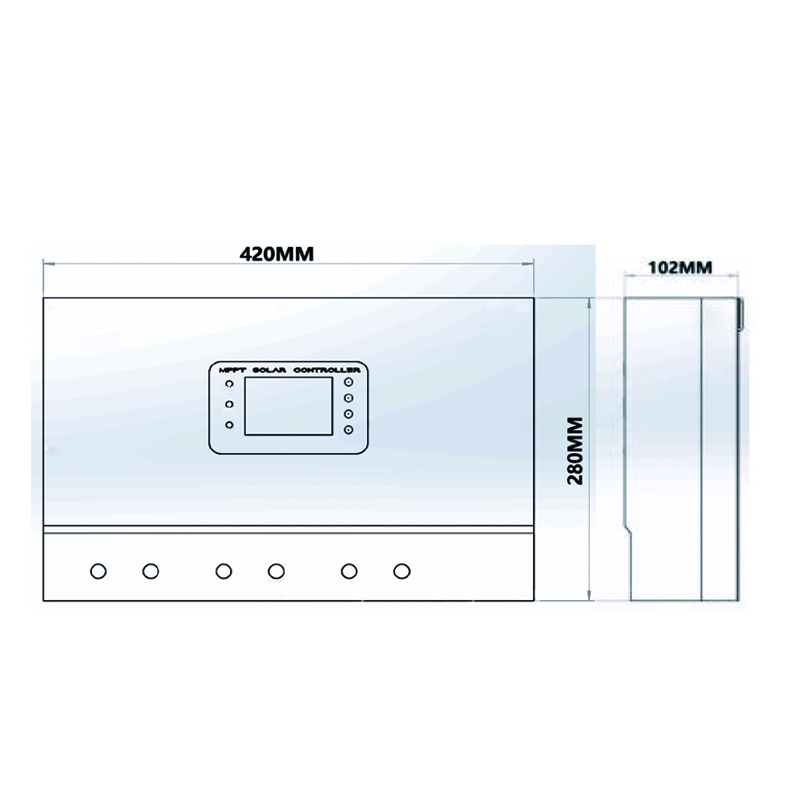

MPPT solar charge controller Master(12V24V36V48V,96V,50A-100A) Technical Drawing
