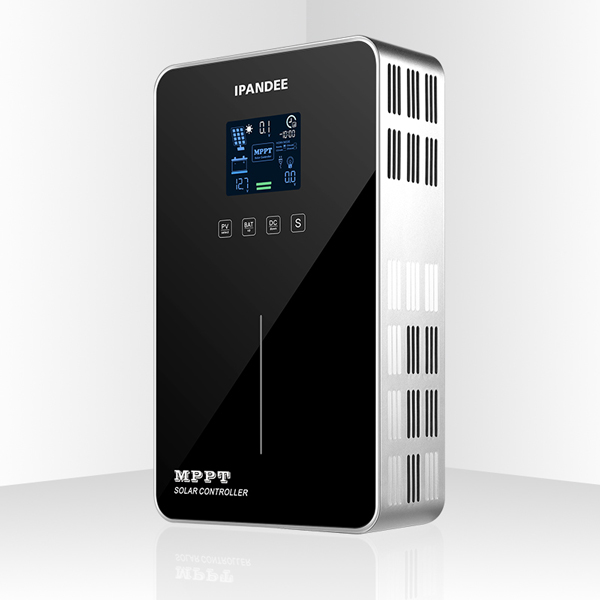

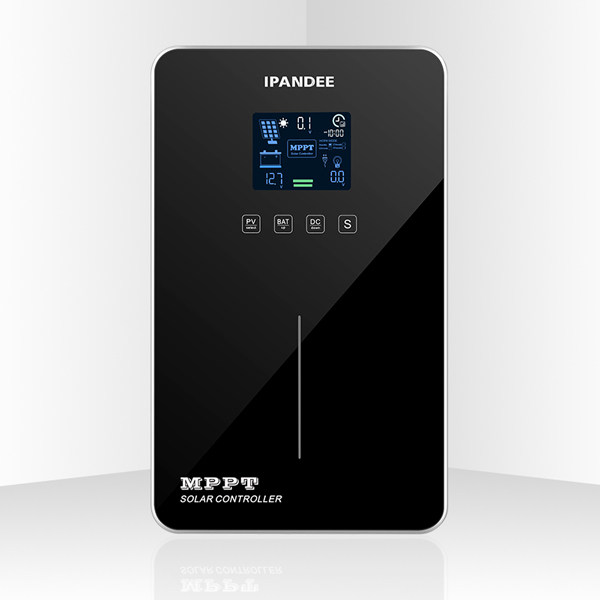

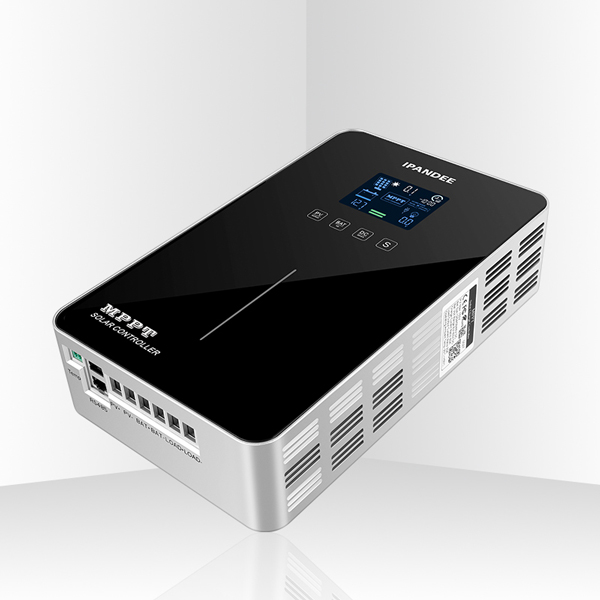

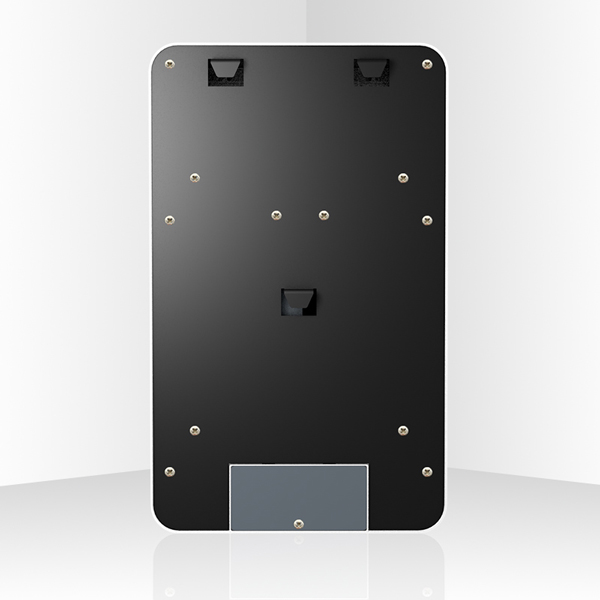

Name: Runner series (12V/24V/36V/48V,40A-100A) MPPT solar charge controller
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

Runner series

MPPT solar charge controller

System voltage: 12V/24V/36V/48V (AUTO)

Charge current: 40A;50A;60A;80A;100A

Max PV input: 150V/200V

Maximum solar panel power: 520W-5200W

Support parallel charging

Support remote control&monitor (PC software and APP)

RS485 communication

Suitable for wall mounted, pole mounted

OEM/ODM available, all functions and specifications can be customized.

MPPT solar charge controller Runner(12V24V36V48V,40A-100A) Specifications

Runner Series	R48L40	R48L50	R48L60	R48L80	R48L100
Battery system	12V/24V/36V/48V auto (Lead-acid batteries)
Battery types	Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT)
Rated charge current	40A	50A	60	80A	100A
Rated load current	30A			50A
IP(Ingress protection)	IP21

Main Feature of MPPT solar charge controller Runner(12V24V36V48V,40A-100A)

The tracking efficiency is as high as 99.5%.
Lithium battery activates the wake-up function.
High-definition LCD color display.
The protection function is complete, and the battery system runs more stably.

Application of MPPT solar charge controller Runner(12V24V36V48V,40A-100A)

Household
Energy storage system
Photovoltaic Engineering Project
Base station

Household

The household photovoltaic power generation system can meet the electricity demand in areas without electricity or unstable electricity, and its power level generally ranges from several hundred watts to several kilowatts.

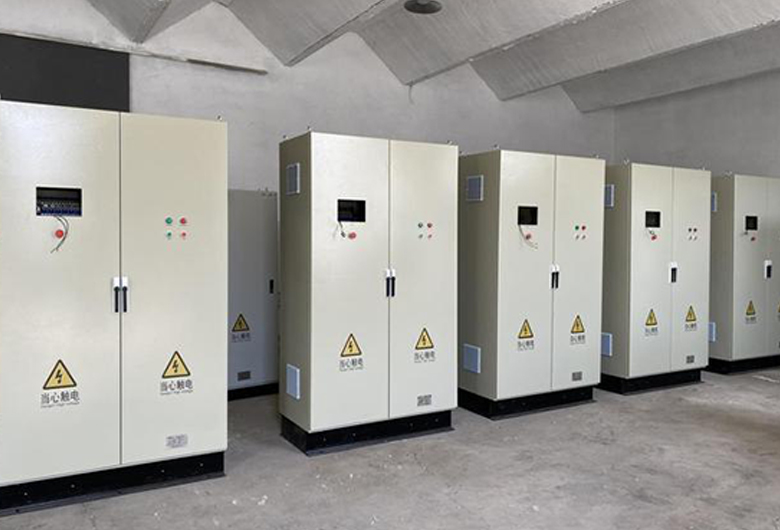

Energy storage system

It is suitable for applications that require high power grid continuity, such as areas without electricity and isolated islands.

Photovoltaic Engineering Project

For large-scale projects or building roofs, the components are oriented in the same direction, and the surrounding area is not blocked, and the capacity is generally above the megawatt level.

Base station

The use of solar energy systems for base stations and communication stations can not only reduce the overall cost of the system, but also improve the power supply guarantee rate of the system. It can also be applied to the centralized power supply of villages, islands and communication base stations to meet the power demand of the load.

IPANDEE Updates

13

Dec

China Mobile Stacked PV Base Stations was Successful Delivered, IPANDEE Strives to Help Carriers on Energy Conservation and Emission Reduction, Cost Optimization, and Efficiency Improvements
In October 2024, IPANDEE, in collaboration with its partners, delivered the first solar-powered, green energy-integrated 5G base stations for Guangdong Mobile. The energy consumption of 5G bas...

Read More +
27

Nov

Leader of Shenzhen New Energy Association Visited IPANDEE for Exchange
On September 10, 2024, Mr. Sun Siyuan, Secretary General of Shenzhen New Energy Association, visited Shenzhen IPANDEE New Energy Technology Co., Ltd. (hereinafter referred to as "IPANDEE") a...

Read More +
23

Nov

IPANDEE PV Adapter & Intelligent Combiner Help operators Reduce Carbon Emissions and Costs and Promote the Development of Green Stacked PV Base Stations
As the energy crisis continues to ferment, energy prices have risen, and operators have faced new challenges in energy. For example, some operators in Europe are facing the challenge of energy shortag...

Read More +

Runner series (12V/24V/36V/48V,40A-100A) MPPT solar charge controller

MPPT solar charge controller Runner(12V24V36V48V,40A-100A) Specifications

Main Feature of MPPT solar charge controller Runner(12V24V36V48V,40A-100A)

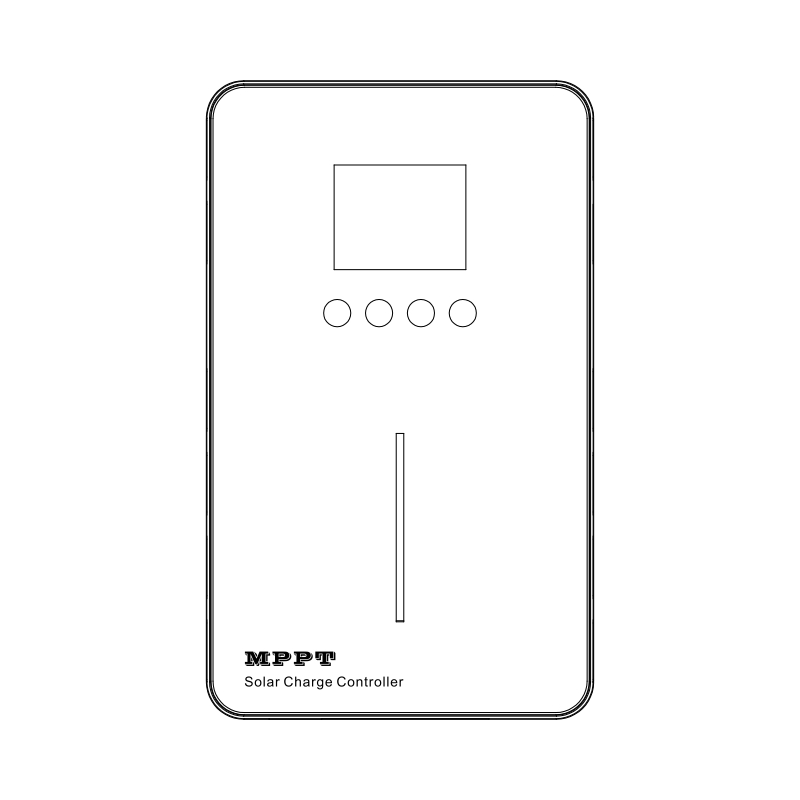

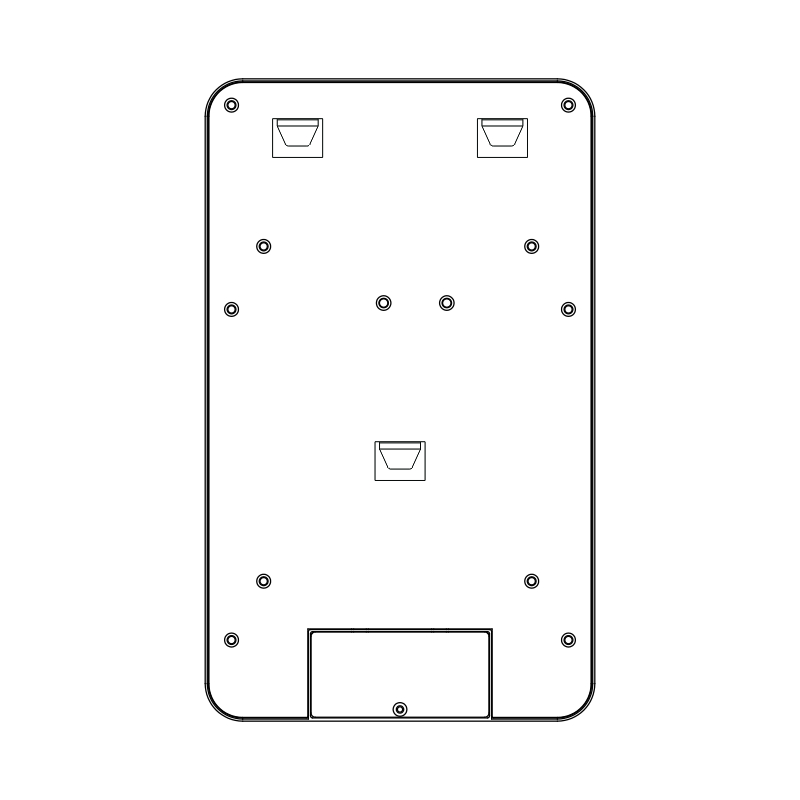

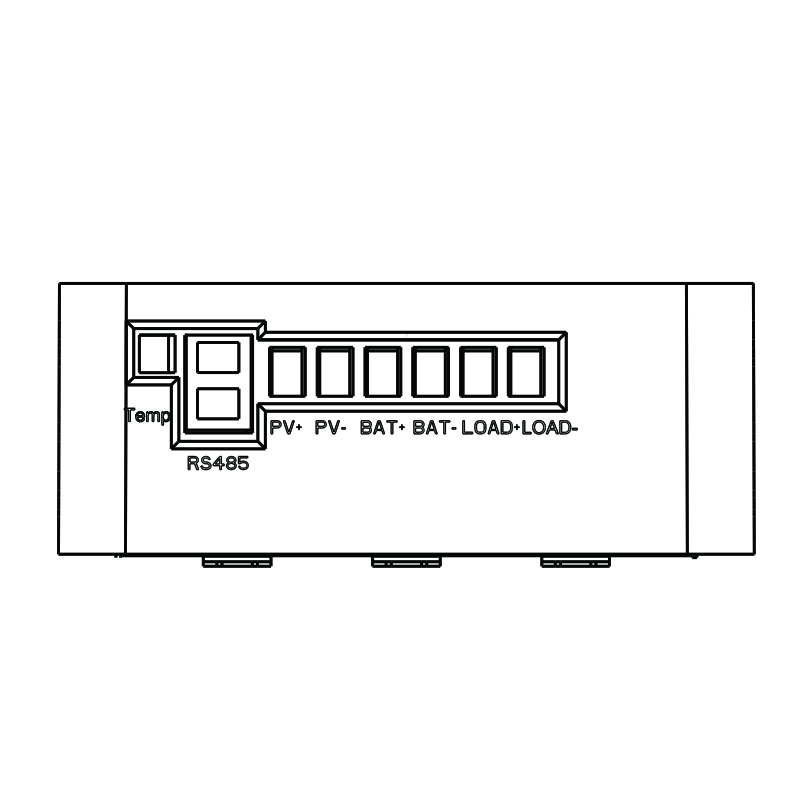

MPPT solar charge controller Runner(12V24V36V48V,40A-100A) Technical Drawing
