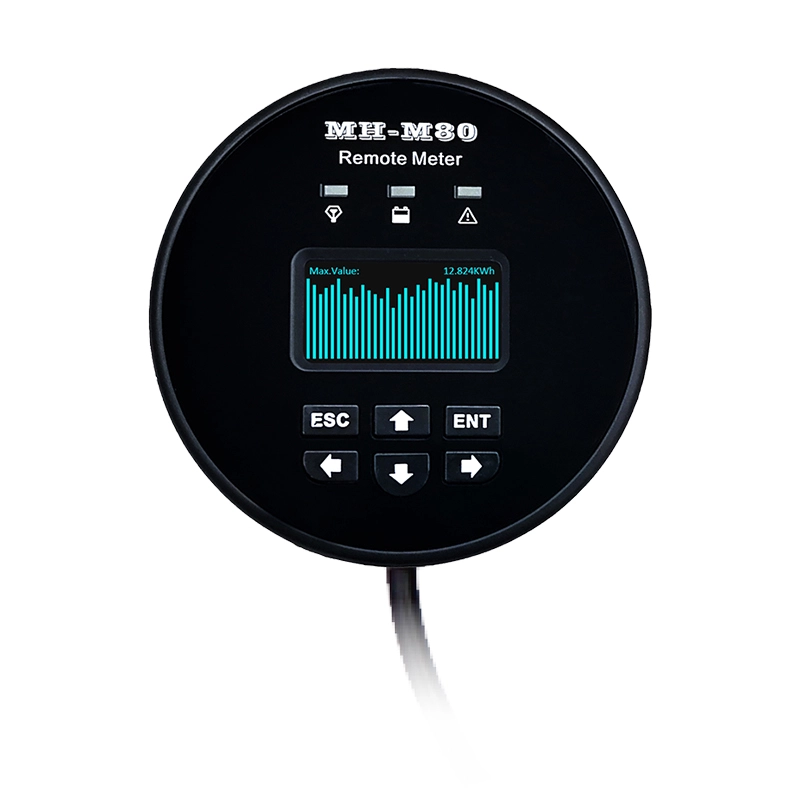

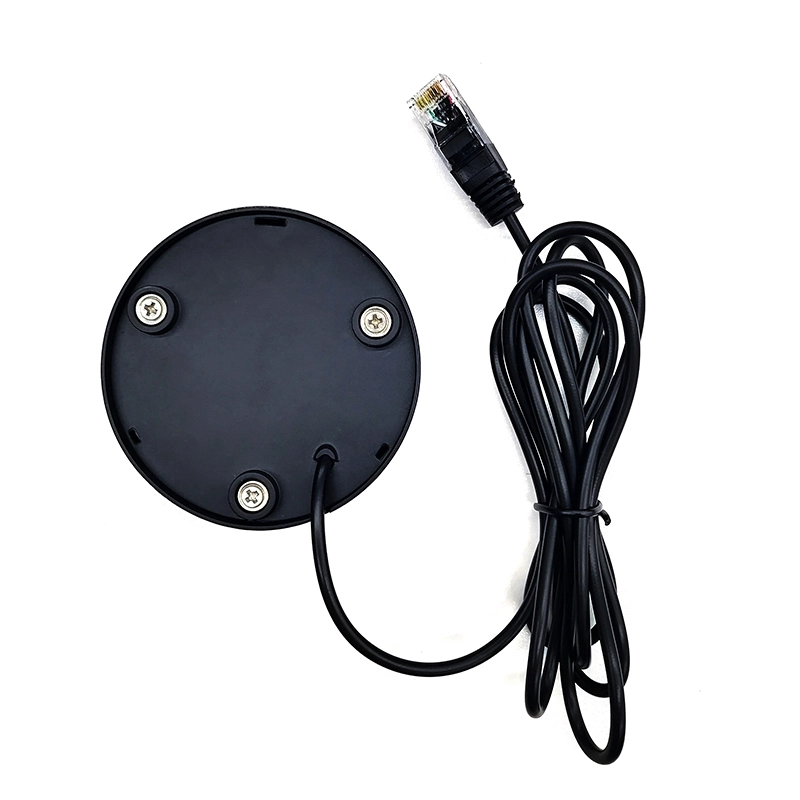

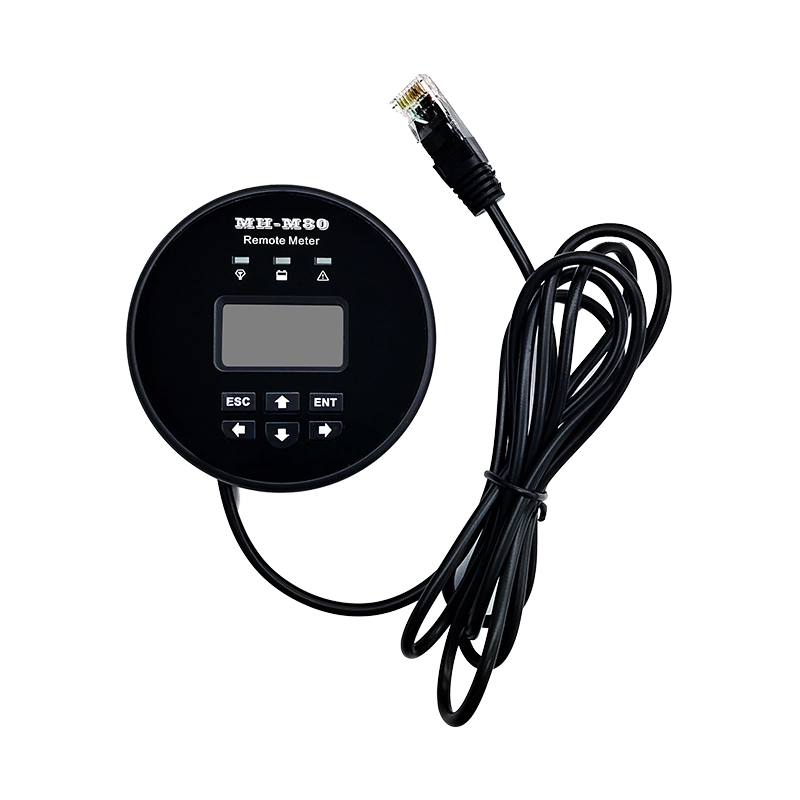

Name: Remote meter MH-M80
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

1. Automatically identify and display relevant parameters of connected devices.

2. OLED real-time display of operating data and working status.

3. Six navigated function buttons, make the operation intuitive, convenient and fast.
4. Directly supply power to the display unit from the controller, which requires no additional external power.
5. Support real-time data monitoring, remote load switch, data browsing, and modification of equipment parameters/charging control parameters/load control parameters.

6. Based on the RS485 communication bus, long communication distance.

Technical specifications of HM-M80

Dimension	80mm diameter, 17.5mm high
Mounting hole	3mm
Installation Method	Magnetic suction + screw
Communication interface	RJ45
Supply voltage	4.8V~5.5V
Power Consumption	≤0.5W
Power supply	Connect to controller
Communication	RS485 bus
