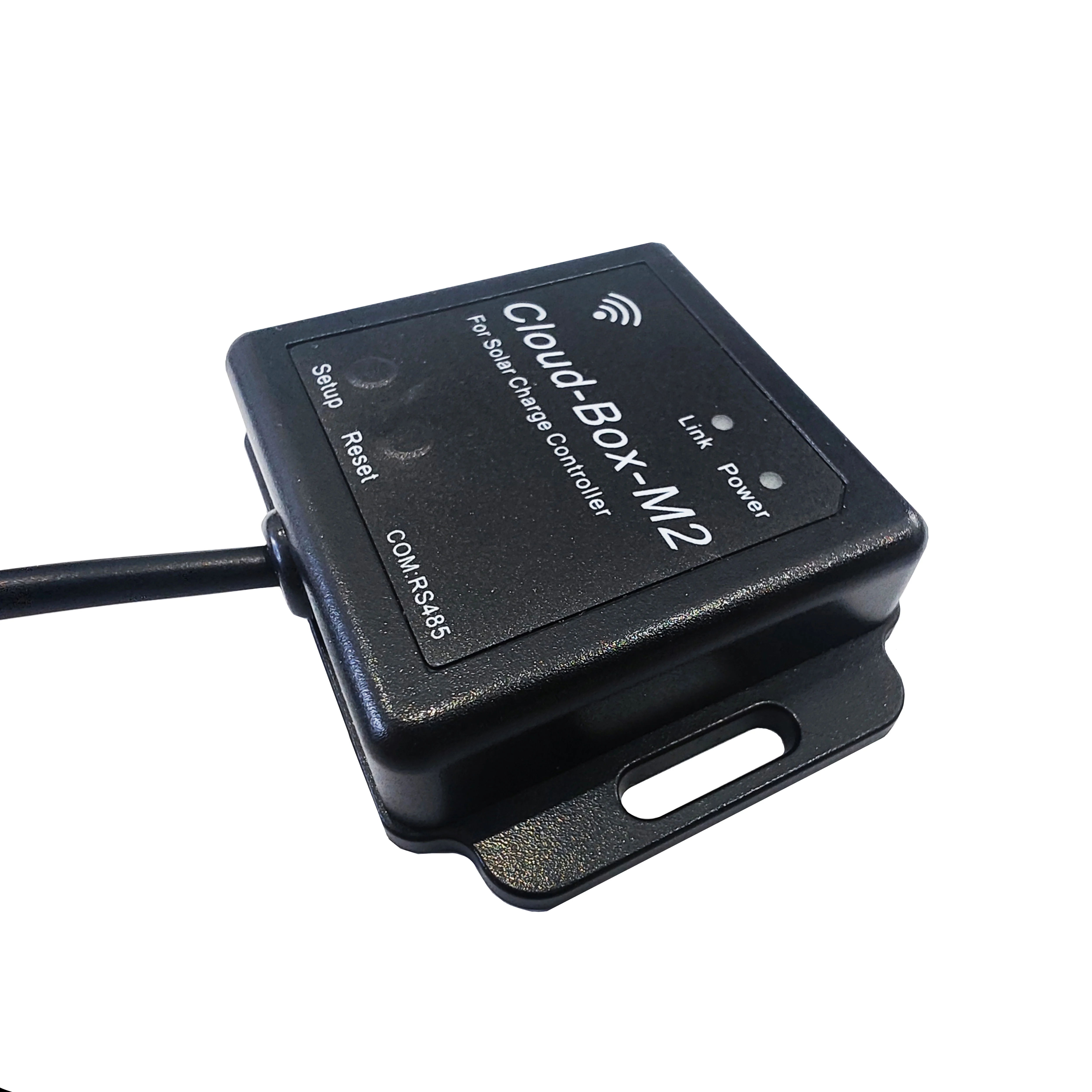

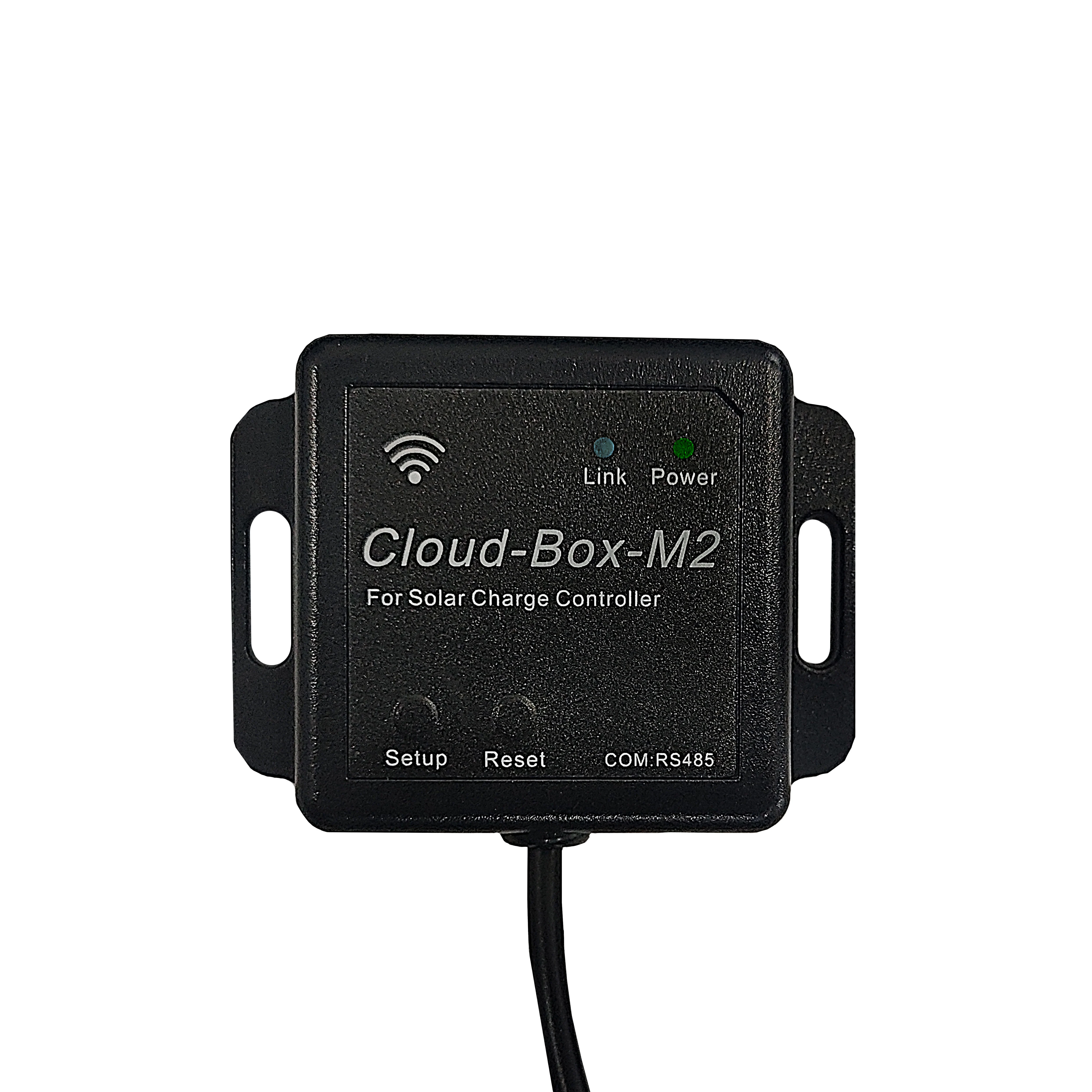

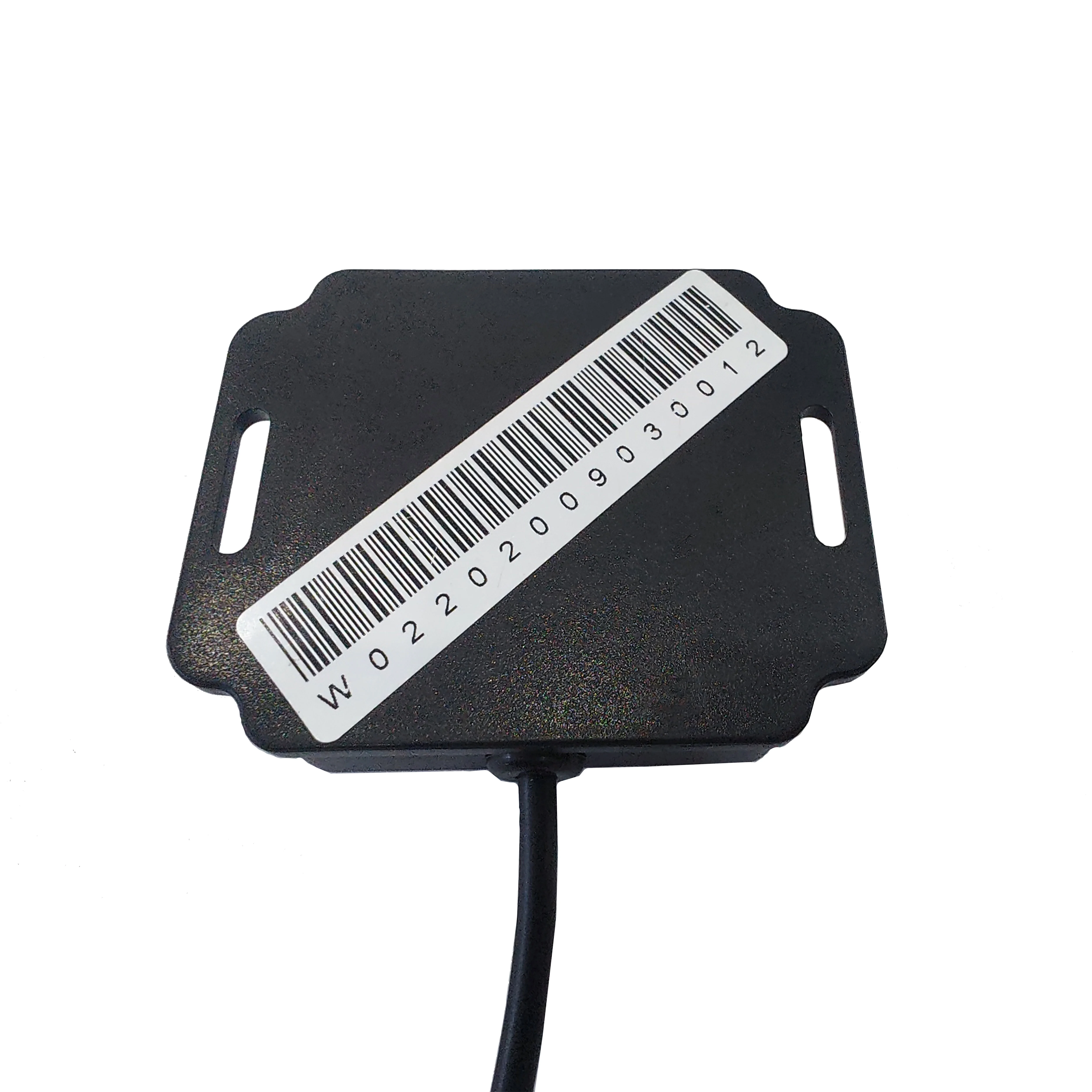

Name: WIFI Module Cloud-Box-M2
Brand: Shenzhen Ipandee New Energy Technology Co., Ltd.

It is suitable for the wifi module of our company's solar controller to extend the

remote data transmission function. The connected devices communicate and

collect data, and the devices can be wirelessly monitored at any time through

the cloud server or mobile APP.Control and parameter setting, etc., easy to

install and simple to set up.

Technical specifications of the WiFi module

Product number	Cloud-Box-M2
version	2.4G
Input voltage	4.5V-5.5V (maximum support 12V)
Standby power consumption	20mA
Running power consumption	40mA
Working current peak	260mA
working frequency	2.412GHz~2.484GHz
Serial port baud rate	Fixed baud rate 9600bps
communication method	RS485

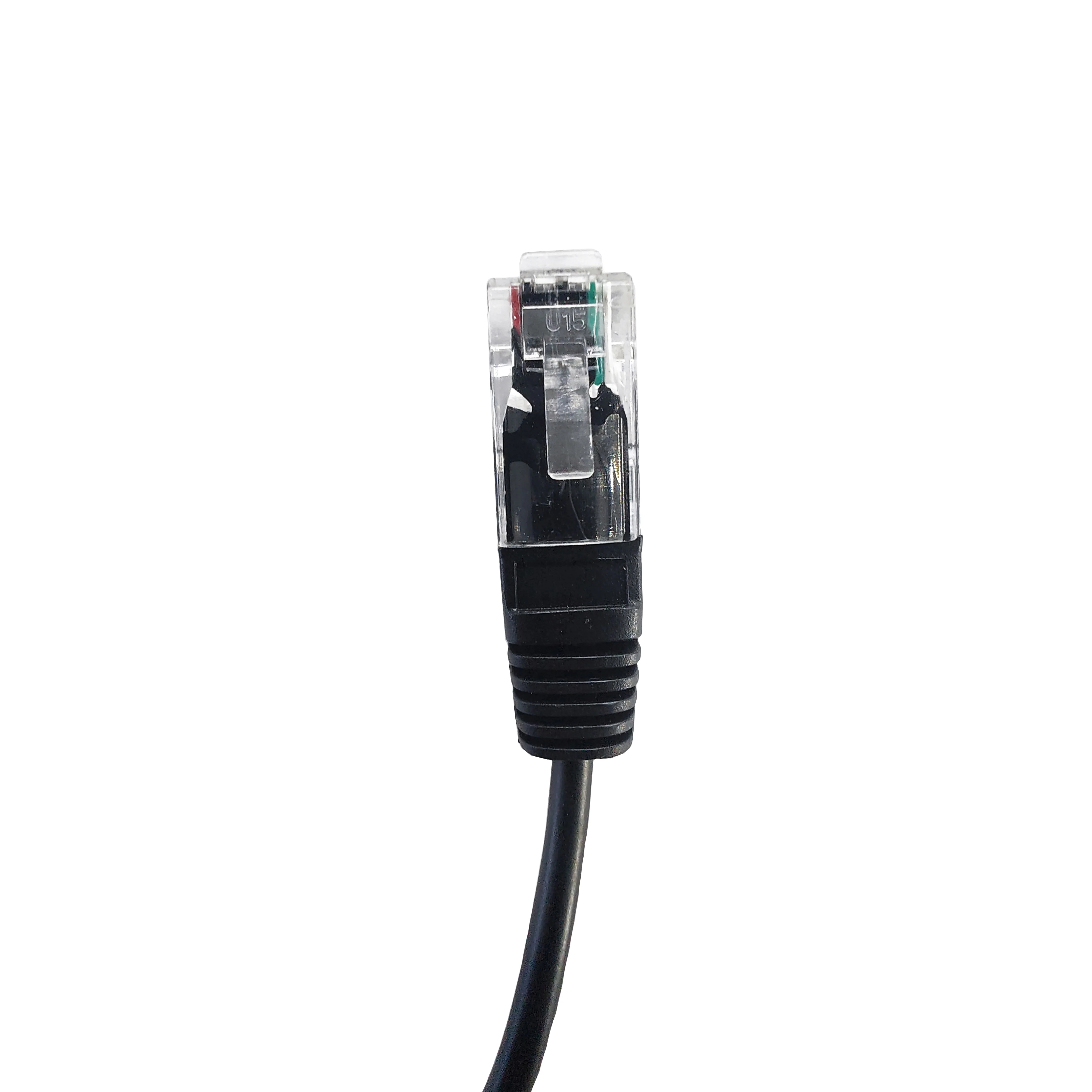

Interface Type	RJ45
connecting line	Standard network cable (parallel cable)
size	66.55115.5
Installation size	5.78*12mm
Mounting Aperture	φ3.5
Operating temperature	-40℃~75℃
Working humidity	10%~90% RH(Does not condense)
Protection class	IP 31
net weight	55g
